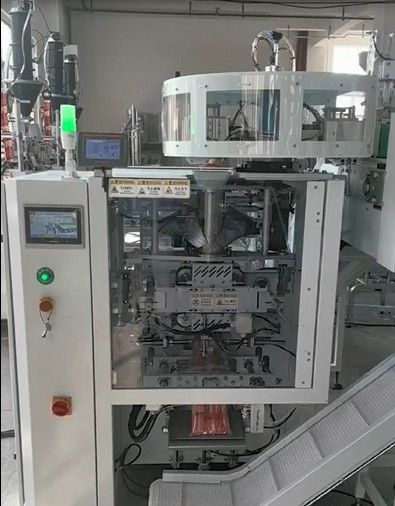

Vertical High Speed Automatic Granule and Powder Packaging Machine

Product Features:

◊ Inovance7 'color touch screen +Inovance PLC, with error prompt and self-diagnosis function.

◊ Yuian 4-channel PID temperature control module, PLC control, touch screen display and setting

The film feeding by the reduction motor is intelligent and smooth

The servo motor bag pulling (Inovance) features high precision and precise bag length control

Pneumatic filling (Inovance) features high precision, good synchronization and excellent corrosion resistance

Enhanced heat sealing mechanism, servo control, low noise, clear sealing texture and strong sealing performance

The independent rotating cutter makes it convenient to change the bag length and adjust the cutter position

The measurement is synchronized with the main unit to ensure that the feeding at any speed matches the main unit

• Schneider or OMRON electrical components

All 304 stainless steel exterior parts (with plastic spraying for anti-corrosion), meeting the requirements of GMP for pharmaceuticals

The contact surfaces of the materials are made of food-grade plastic and 316 stainless steel

The electrical box is designed with a compressed air ventilation structure

Technical parameters:

◇ Packaging materials: Granules (disinfection granules)

◇ Packaging speed: 70-100 packs per minute (adjustable speed via touch screen)

◇ Packaging weight: 2g-7.5g per bag (capacity made as required)

◇ Filling accuracy: ≤ ±5% (Depending on the packaging materials, not exceeding the national standard range)

◇ Measurement method: Pneumatic double swing measuring cup measurement

Bag-making capacity: W ≤140mm × L ≤140mm

◇ Width of the packaging film: 60mm

Bag size: 140*30mm, 80*30mm

◇ Sealing form: Three-side sealing (heat sealing by servo motor)

◇ Heat-sealing patterns: Horizontal sealing: Diagonal mesh pattern (spacing 1.0mm), vertical sealing: straight pattern (spacing 1.0mm). Modified on June 5, 2025

◇ Sealing width: Transverse sealing width: 6mm, longitudinal sealing width: 6mm (adjustable from 5 to 7mm)

◇ Cutting method: Flat mouth cutting

◇ Easy-tear opening: A one-character cut on the longitudinal seal

◇ Bag pulling method: Servo motor bag pulling (Inovance)

◇ Bag length control: Color mark control or the set length can be switched via the touch screen

◇ Packaging film material: Composite aluminum film

◇ Overall dimensions: Including vacuum feeder: L1100mm*W1000mm*H2560mm

Metering device: Particle swing cup metering device (316 material)

Technical parameters:

◇ Measuring range: 2g,7.5g (The measuring cup accessory needs to be changed)

◇ Filling speed: ≤150 bag/min

◇ Hopper capacity: 12L (integral type)

◇ Adjustment method: Handwheel lead screw (with dial)

◇ All 316 stainless steel exterior parts

One set of measuring cups is randomly included

Vacuum cleaning device (including vacuum cleaner)

Voltage and power: 220V/50HZ, 3kw

◇ Machine dimensions: 900*1500*1925mm

◇ Machine weight: 800Kg

DS241 Thermal transfer coding machine

Technical parameters:

Ribbon width: 25mm

Number of lines to print: 3 lines

The maximum capacity of each line is 16 characters

Character size: 3(H)*2(W)mm

Counting bag device

◇ Bag size: Bag width: 30mm

Counting method: 25 items per group (bag length 140 mm)

◇ Counting method: Photoelectric counting

◇ Fixed-point stop conveyor belt (cache completion count completion bag)

◇ Bag counting cache hopper device

◇ Automatic positioning device (fixed-point stop conveyor belt positioning bagging)

◇ Power supply: AC220V,50Hz, approximately 0.6KW

◇ Air source consumption: 6Mpa, 0.1 m ³ /min
